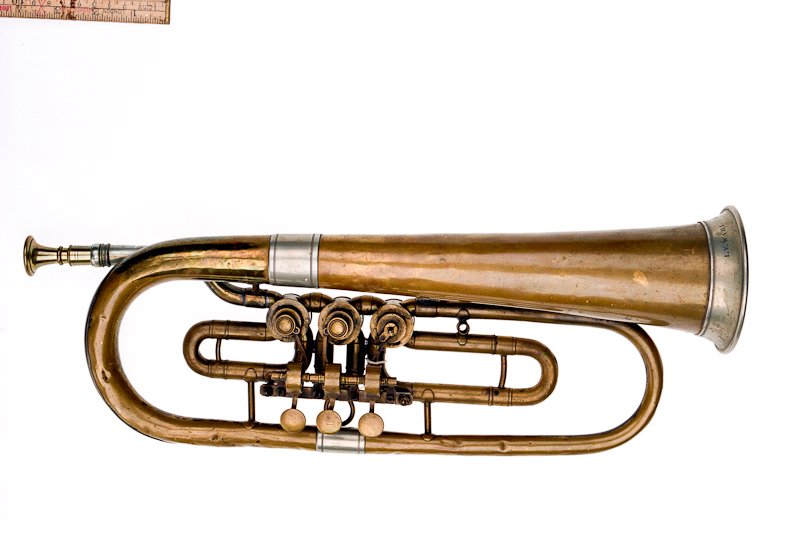

Kornett

Inscriptions

I.V.Wahl Lansdkrona

Measurements

Längd / / 1260 / mm /

Diameter / mouthpiece receiver / 12,58 / mm /

Diameter / mouthpiece receiver / 13,72 / mm / external after decor.

Längd / mouthpiece receiver / 58,59 / mm /

Diameter / leadpipe / 12,35 / mm / by 1st valve ferrule

Höjd / 1st Valve case / 25,49 / mm /

Höjd / valve cap / 4,64 / mm /

Diameter / valve cap / 28,52 / mm /

Diameter / valve cap / 25,59 / mm / inner

Diameter / bore / 12,31 / mm / external after 3rd valve

Diameter / bell / 93,15 / mm /

Höjd / garland / 20,43 / mm /

Diameter / Bell / 68,66 / mm / at garland

Diameter / Bell / 33,06 / mm / at 1st ferrule (little oval distortion)

Diameter / 1st ferrule / 33,44 / mm / bell end (little oval distortion)

Diameter / Bell bow / 31,78 / mm / by 1st ferrule

Diameter / Bell bow / 17,01 / mm / by 2nd ferrule

Diameter / 2nd ferrule / 17,77 / mm / towards bell

Diameter / 2nd ferrule / 17,41 / mm / away from bell

Diameter / 2nd bow / 16,24 / mm / at 2nd ferrule

Diameter / 2nd bow / 12,05 / mm / at 3rd valve
