UEDIN · 2439

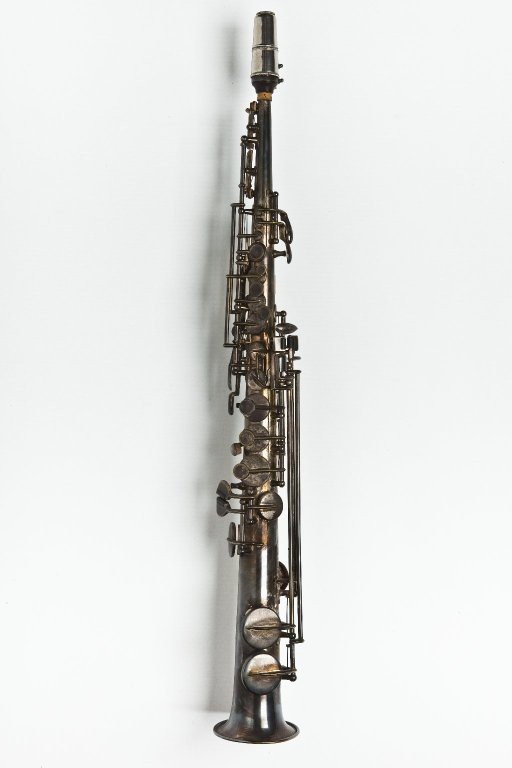

Soprano saxophone. Nominal pitch: B♭.
Zoom with the + and − buttons, a double-click, a pinch, or Ctrl + mouse wheel.
Description
Technical description: Military pattern (narrow bore). One-piece straight tube, silver-plated; ebonite mouthpiece and silver-plated brass ligature and cap (probably original). Box and screw for music card-holder. Highest note is written E♭₆. Rollers for B and C♯ L4 keys, and C and E♭ R4 keys. E♭₆ key depresses D₆ touchpiece. L0: Automatic octave keys, changing below written A₅. L1: B₄; bis key (B♭₄); D₆; E♭₆. L2: A₄. L3: G₄. L4: Articulated G♯₄; C♯₄; B₃; B♭₃. R1: F₄; B♭₄; C₅. R2: E₄. R3: D₄; F♯₄. R4: E♭₄; C₄. Keymount type: pillars mounted on plates. Keyhead type: modern. Serial number: 1908. Overall size: 632 without mouthpiece; bell diameter 83. Bore: at top 8.0. Inscription: on bell "HAWKES & SON / Denman Street / Piccadilly Circus / LONDON / 1908". With original wooden case; reed cap. Usable pitch: Probably made for use at A₄ = c 439 Hz. Performance characteristics: Cross F# and open C# (written) both flat.
Measurements
632 without mouthpiece; bell diameter 83.
