UEDIN · UEDIN:554

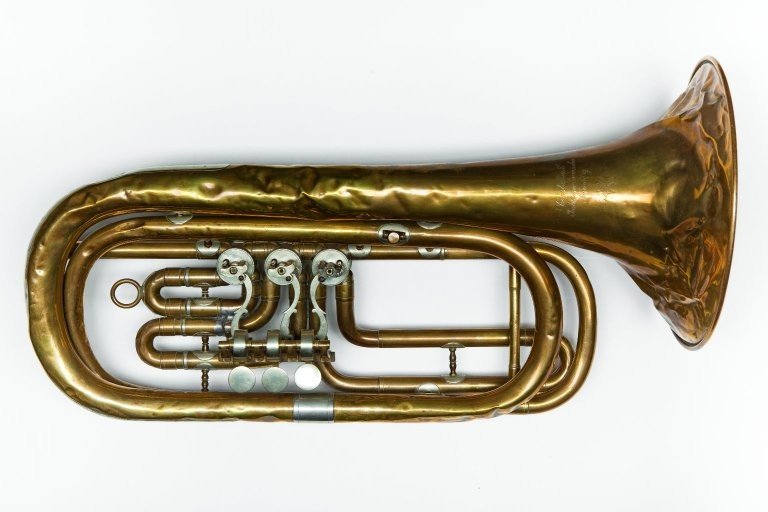

Baritone or tenor flugelhorn. Nominal pitch: 8-ft C.
Zoom with the + and − buttons, a double-click, a pinch, or Ctrl + mouse wheel.
Description
Technical description: Brass with german silver ferrules and valve mechanism; no garland. Bell-forward wrap. The bore profile, with a marked expansion in the first half of the tube, could be considered to be that of a flugel horn. It is not known what name would have been used for this instrument by its maker or original users. R1: 1st valve: one semitone. R2: 2nd valve: two semitones. R3: 3rd valve: three semitones. Valve type: 3 rotary valves, lever operated with drum springs.
Inscriptions
Inscribed on bell "Const. Riedl / Instrumentenmacher / Nurnberg".
Measurements
length 510; bell c 215.
