UEDIN · 3847

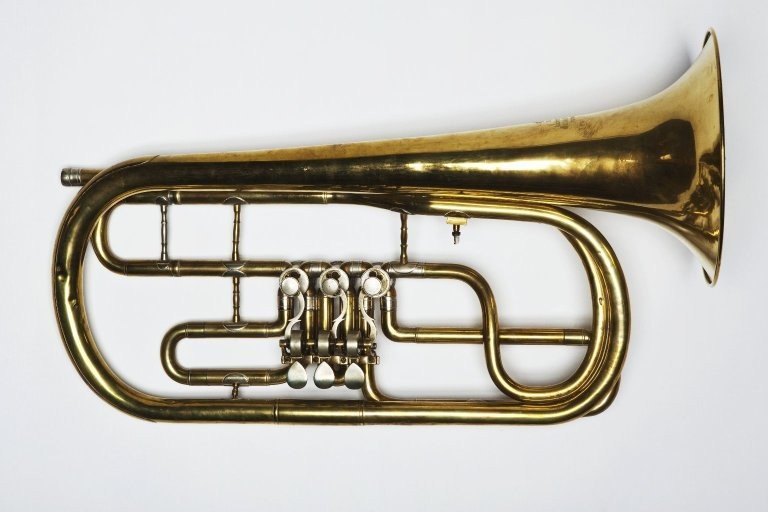

Bass trumpet or baritone. Nominal pitch: 9-ft B♭.
Zoom with the + and − buttons, a double-click, a pinch, or Ctrl + mouse wheel.
Description
Technical description: Bell-forward form; brass with german silver trim; fitting for music card holder. Valve type: 3 rotary valves; cork buffers on top caps. Overall size: 538; bell 200. Sounding length: minimum 2717. Bore: at c 35 from mouthpiece receiver (minimum) 11.6; not expanding in 100mm; distance to valve casing c 800; v.t.s. (3,2,1) 12.5; m.t.s. bore 12.3 - 13.3; at 1358mm from bell end, c 14.5; at c 712mm from bell end, 20.5; at 22.3mm from bell end, 127.9. B = 0.66. Bell cutoff = 900 Hz. Dia of mouthpiece receiver: m.r.t. 12.8 - 12.3. Inscribed on bell "Sächs. / Musikinstr.-Manufact. / SCHUSTER & Cc. / Markneukirchen" surmounted by crown emblem. Usable pitch: A⁴ = 440 Hz; main tuning-slide allows use at A⁴ = 435 Hz. Purchased by lender with mouthpiece (3848). Specific literature references: Sotheby's auction catalogue 4.11.98, lot 257.
Measurements
538; bell 200.
