UEDIN · UEDIN:172

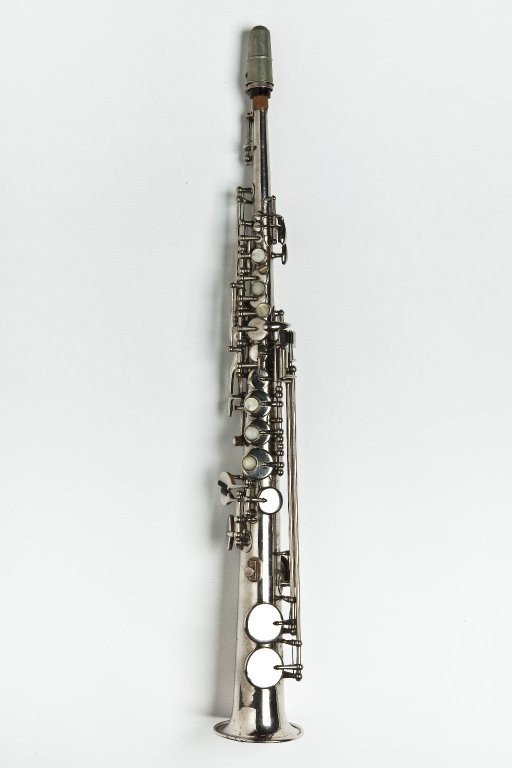

Soprano saxophone. Nominal pitch: B?.
Zoom with the + and − buttons, a double-click, a pinch, or Ctrl + mouse wheel.
Description
Technical description: Nickel-plated body and keywork; one-piece straight tube. With fitting for music card-holder. Highest note is written E?6. Rollers for B and C? L4 keys, and C and E? R4 keys. E?6 key depresses D6 touchpiece. L0: Automatic octave keys. L1: B4; bis key (B?4); D6; E?6. L2: A4. L3: G4. L4: Articulated G?4; C?3; B3; B?3. R1: F4; side B?4; C5. R2: E4. R3: D4; F?4. R4: E?4; C4. Keymount type: pillars mounted on plates. Keyhead type: modern.
Inscriptions
Inscribed on bell "UNIVERSEL / SAVANA / PARIS / 1755 / BREVETÉ / 248.840".
Measurements
635 without mouthpiece; bell diameter 89.
