UEDIN · 4421

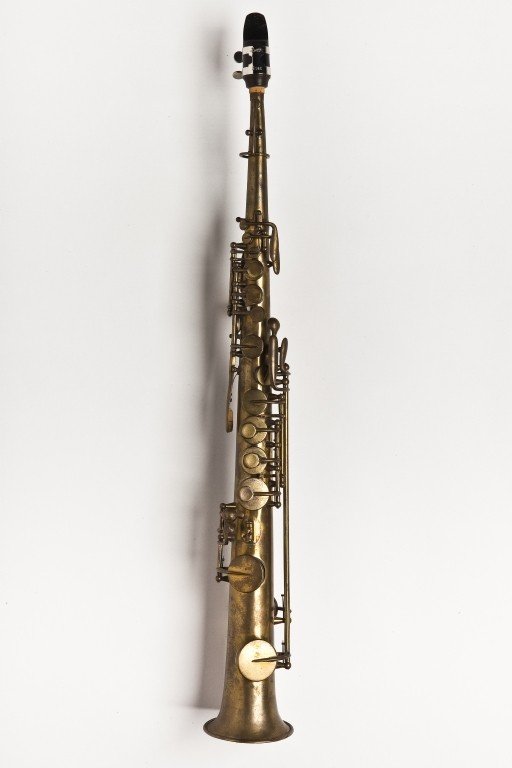

Soprano saxophone, nominal pitch: B♭
Zoom with the + and − buttons, a double-click, a pinch, or Ctrl + mouse wheel.
Description
Technical description: Brass, one-piece straight body; fitting for music card holder. Ebonite (?) mouthpiece with metal ligature. L0: Two simple octave keys. L1: B₄; E♭₆; F₆. L2: A₄. L3: G₄. L4: G♯₄; B♮₃; B♭₃. R1: F₄; side B♭₄. R2: E₄. R3: D₄. R4: E♭₄; C₄. Keymount type: rod / pillar. Keyhead type: modern. Serial number: 19572. Overall size: 577 without mouthpiece; 629 with mouthpiece. Bore: at top 8.8; bell 80. Inscription: on bell "No. 19572 / Saxophone Soprano en si ♮ Brevete. / Adolphe Sax a Paris / Fteur. de la Mson. Milre. de l'Empereur" and monogram AS with "PARIS" on stem of "S"; at top of tube (upside-down) "7646". Usable pitch: from A₄ = 450 Hz to A₄ = 455 Hz.
Measurements
577 without mouthpiece; 629 with mouthpiece.
