UEDIN ยท 1297

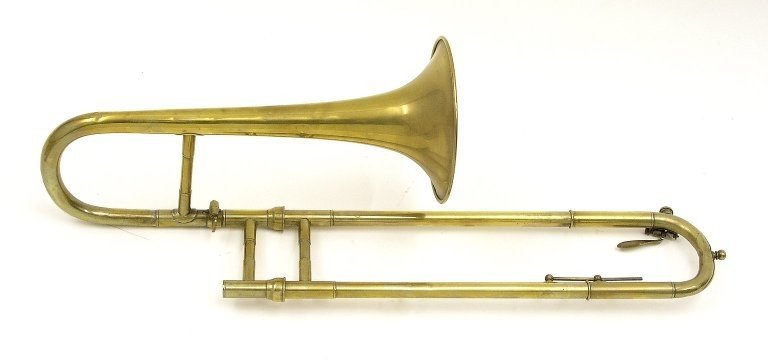

Soprano trombone. Nominal pitch: 4½-ft B♭.
Zoom with the + and − buttons, a double-click, a pinch, or Ctrl + mouse wheel.
Description
Technical description: Brass; tuning-slide at foot of main slide. With water-key. Adjustable stop on tuning-slide. Ligature fitting at joint. Plated stockings. One bell stay. Overall size: 522; bell 126 Bore: at c 40mm from mothpiece receiver (minimum bore) 10.7; not expanding in 100mm from mouthpiece receiver; descending slide, 10.7; ascending alide 10.7; joint, 10.7 Dia of mouthpiece receiver; m.r.t. 11.1 - 10.7 Inscribed at foot of main slide "A". Restraining nut on tuning slide missing. Usable pitch: Plays c 100 cents above A⁴ = 440 Hz with mouthpiece (1298); tuning-slide allows use at A⁴ = 439. Purchased by lender with and possibly formerly used with cornet mouthpiece (3029).
Measurements
522; bell 126.
