UEDIN · 1545

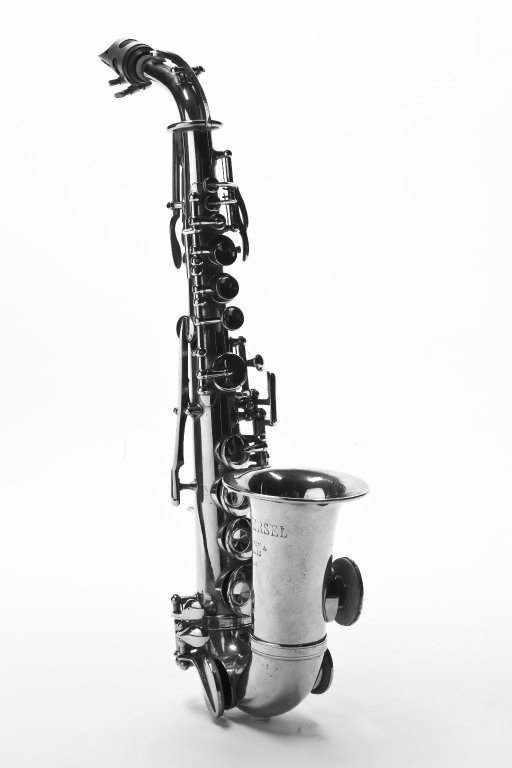

Soprano saxophone. Nominal pitch: B♭.
Zoom with the + and − buttons, a double-click, a pinch, or Ctrl + mouse wheel.
Description
Technical description: One-piece curved tube (alto saxophone shape), nickel-plated brass; mouthpiece of ebonite with silver-plated ligature and cap. Lowest note written B₃, highest note written E♭₆. No rollers. E♭₆ key depresses D₆ touchpiece. L0: Two simple octave keys. L1: B₄; D₆; E♭₆. L2: A₄. L3: G₄. L4: G♯₄; C♯₄; B₃. R1: F₄; B♭₄. R2: E₄. R3: D₄. R4: E♭₄; C₄. Keymount type: pillars mounted on plates. Keyhead type: modern. Serial number: 114. Overall size: 470 (428 without mouthpiece); bell diameter 85. Sounding length: air column length of body 610. Bore: at top 8.9. Inscription on side of bell "UNIVERSEL / SAVANA / PARIS / 114"; mouthpiece inscribed "J. HEYWORTH & SON / BLACKPOOL - PARIS / LONDON". With own reed-cap and case. Repair History: The mouthpiece is a replacement. Usable pitch: Plays at A₄ = c 435 Hz.
Measurements
470 (428 without mouthpiece); bell diameter 85.
