UEDIN · 2656

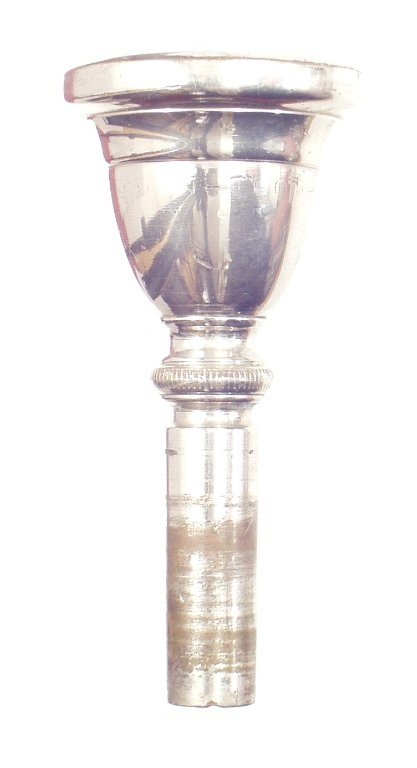

Mouthpiece for tenor trombone.
Zoom with the + and − buttons, a double-click, a pinch, or Ctrl + mouse wheel.
Description
Technical description: Silver-plated brass; medium rim contour; maximum bite curvature 2.0; deep intermediate, almost conical, cup shape; smoothly blended throat. Cup volume 5446; shape quotient 1.258. Overall size: length 75.0; external diameter 36.0. Sounding length: cup depth 24. Bore: cup diameter 23.0; minimum diameter 6.4. Depth of taper: shank depth 32.4. Diameter of taper: maximum 11.2; minimum 10.6. Stamped on side of cup "CONN - TROMBONE". Purchased by lender with tenor trombone in Bb (2655).
Measurements
length 75.0; external diameter 36.0.
