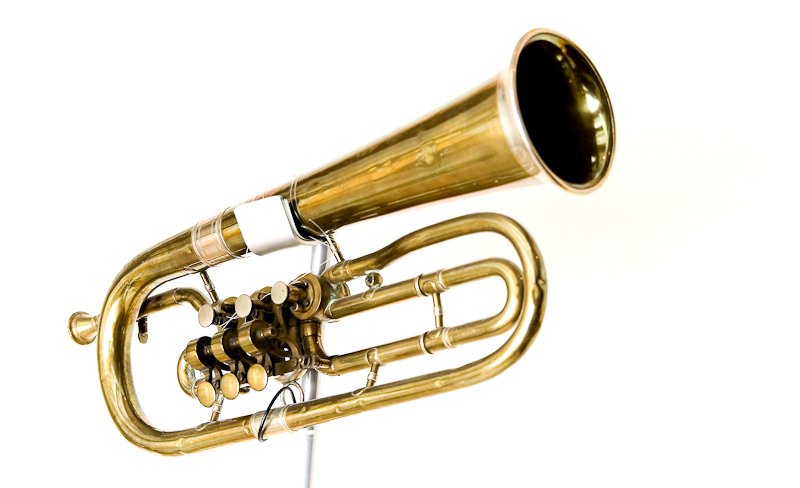

B-kornett

Inscriptions

Iac. V. Wahl Landskrona. Under ventilbalken 27/10 1886 Också " 20/8/1917" gravyr (frihand och små) till höger om tillverkningsdatum. Reperationsdatum

Measurements

Längd / / 1250 / mm /

Längd / leadpipe / 61,65 / mm /

Diameter / leadpipe bore / 11,33 / mm / mouthpiece end

Diameter / leadpipe bore / 10,83 / mm / instrument end

Diameter / leadpipe external / 11,94 / mm / instrument end

Diameter / leadpipe receiver / 11,92 / mm / internal

Diameter / leadpipe receiver / 12,96 / mm / external

Längd / leadpipe receiver / 61,26 / mm /

Diameter / 1st valve receiver / 11,92 / mm / external

Diameter / 1st vlave casing / 27,65 / mm / external

Höjd / 1st valve casing / 27,79 / mm /

Diameter / Bell / 74,9 / mm / external

Diameter / Bell / 58,26 / mm / external at garland

Diameter / Bell / 28,12 / mm / at 1st ferrule

Diameter / Ferrule (1st from bell) / 28,68 / mm / bell end

Diameter / Ferrule (1st from bell) / 26,7 / mm / away from bell

Diameter / Bell bow / 25,66 / mm / at 1st ferrule

Diameter / Bell bow / 14,19 / mm / at 2nd ferrule

Diameter / 2nd ferrule / 15,03 / mm / towards bell

Diameter / 2nd ferrule / 14,65 / mm / away from bell

Diameter / 2nd bow / 13,52 / mm / at 2nd ferrule

Diameter / 2nd bow / 12,1 / mm / near bell-stay

Höjd / valve cap / 5,4 / mm /

Diameter / valve cap / 25,7 / mm / inner

Diameter / 3rd tuning slide / 10,92 / mm / inner

Längd / 3rd tuning slide's slide / 47,2 / mm /

Längd / distance between slides / 21,79 / mm /

Längd / Valve brace / 98,65 / mm /

Höjd / Garland / 15,41 / mm /
