Ballad horn. Nominal pitch: C|/|B♭
Zoom with the + and − buttons, a double-click, a pinch, or Ctrl + mouse wheel.
Description

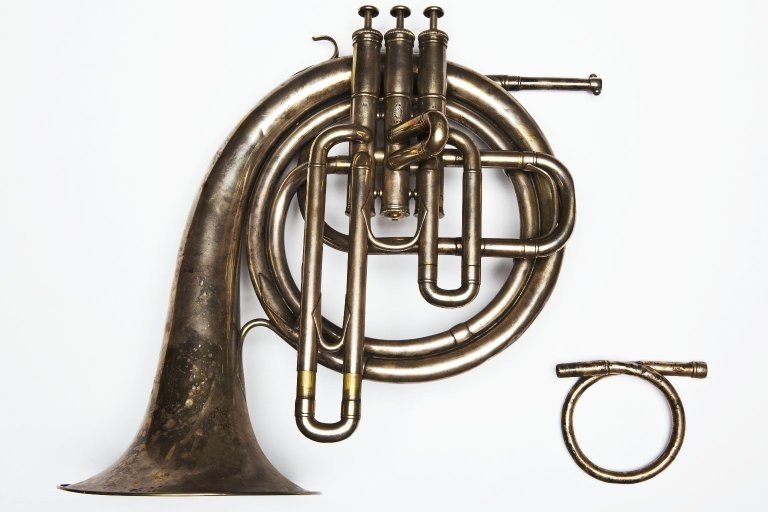

Ballad horn. Nominal pitch: C / Bb 3 valves. Maker: Distin & Co. London. 1869. Serial number: instrument, 20990; valves, 11000. According to the firm's archives [work shop order books], batch of 6 (20989 94) given out prior to 1 Jun 1870. Overall size: perpendicular to bell 350; corpus diameter c 245: bell 180. Sounding length: minimum with C shank 2289; minimum with Bb crook 2577; overall air column length of C shank 90; of Bb crook 394. Bore: C shank at c 8mm from mouthpiece receiver (minimum bore) 9.0; C shank at distal end, 9.9; Bb crook at c 23mm from mouthpiece receiver (minimum bore) 8.9; Bb crook at distal end, 9.05; m.t.s. at c 356mm from shank/crook receiver, tuning slide bore 11.65; centre of valve cluster at c 594mm from shank/crook receiver, v.t.s. bore (1,2,3) 11.65; at 1144mm from bell end, c 13.8; at c 600mm from bell end, 19.5. B = 0.53 (in C); B = 0.57 (in Bb). Dia of mouthpiece receiver: m.r.t. of shank 9.4 9.0; of crook 9.5 9.0; external taper of shank 11.0 11.9; of crook 10.8 11.5; shank/crook receiver taper on instrument body 12.0 11.1. Technical description: silver-plated brass; with shank for|C and crook for B♭. Valve type: 3 Périnet valves, top sprung with compression spring inside hollow stem; alignment by unequal lugs on spring anchor plate. Stamped on bell with trumpet and banner trademark incorporating "DISTIN" / "Patent Light Valve / DISTIN & CO. / MAKERS / 9 & 10 GRT. NEWPORT ST. / LONDON / 20990"; on valve top and bottom caps and side of casings "13", "14", "15"; on 2nd valve casing with words forming an ellipse "DISTIN * LONDON *", inside "MAKER" / "11000"); on crook mouthpiece ferrule "Bb". Previous ownership: ex John Webb collection; According to the firm's archives [Distin & Co Stock Books], the instrument was made in a batch of 6 (20989 94). "Ballad Horn in C P.L.V.". Added to stock 5 Aug 1869;, sold 7 Aug 1869 to J. Baker.
Measurements
perpendicular to bell 350; corpus diameter c|245: bell 180.
